Applications and Installation Essentials of Antistatic Flooring
2025-03-24
In modern industrial and technological environments, electrostatic discharge (ESD) poses a significant risk to sensitive electronic equipment, precision instruments, and even human safety. Antistatic flooring systems are designed to mitigate these risks by dissipating static charges efficiently. This article explores the fundamentals of antistatic flooring, its common applications, and key installation considerations.
1. Understanding Antistatic Flooring
Definition and Purpose
Antistatic flooring, also known as electrostatic dissipative (ESD) flooring, is a specialized material that prevents the accumulation of static electricity and safely channels it away from critical areas. It plays a vital role in protecting electronic components, machinery, and personnel from ESD-related damage, which can lead to equipment failure, data loss, or operational disruptions.
Antistatic flooring, also known as electrostatic dissipative (ESD) flooring, is a specialized material that prevents the accumulation of static electricity and safely channels it away from critical areas. It plays a vital role in protecting electronic components, machinery, and personnel from ESD-related damage, which can lead to equipment failure, data loss, or operational disruptions.
Materials and Types
Antistatic flooring is available in various materials, each with distinct properties:
Antistatic flooring is available in various materials, each with distinct properties:
- Conductive Vinyl: A cost-effective option with high durability, suitable for moderate ESD protection.
- Conductive Rubber: Offers excellent shock absorption and chemical resistance, ideal for heavy-duty environments.
- Ceramic Tiles: Extremely durable and heat-resistant, making them suitable for high-temperature settings.
- Metal Composite Flooring: Often used in data centers due to its superior conductivity and structural strength.
Working Principle
Antistatic flooring operates by maintaining a controlled surface resistivity (typically between 10⁶ to 10⁹ ohms). This resistivity range allows static charges to dissipate slowly rather than accumulating, preventing sudden discharges that could damage sensitive equipment.
Antistatic flooring operates by maintaining a controlled surface resistivity (typically between 10⁶ to 10⁹ ohms). This resistivity range allows static charges to dissipate slowly rather than accumulating, preventing sudden discharges that could damage sensitive equipment.
Performance Standards
Compliance with international standards such as ANSI/ESD S20.20 and IEC 61340-5-1 ensures that antistatic flooring meets rigorous safety and performance requirements.
Compliance with international standards such as ANSI/ESD S20.20 and IEC 61340-5-1 ensures that antistatic flooring meets rigorous safety and performance requirements.
2. Key Applications of Antistatic Flooring

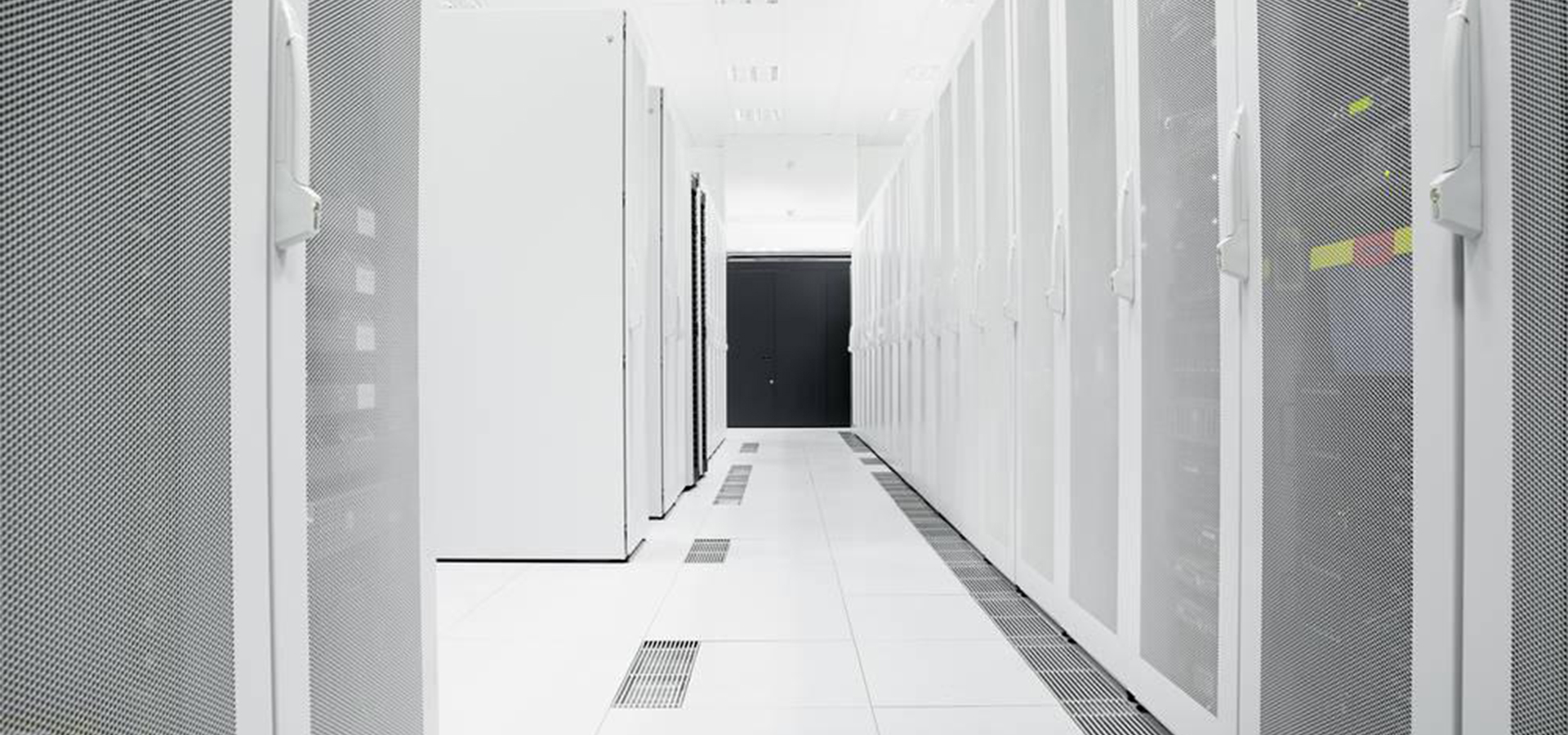

1). Data Centers and Server Rooms
Data centers house thousands of servers and storage devices, which are highly vulnerable to ESD. Antistatic flooring protects against electrostatic damage, ensuring uninterrupted data processing and storage.
Data centers house thousands of servers and storage devices, which are highly vulnerable to ESD. Antistatic flooring protects against electrostatic damage, ensuring uninterrupted data processing and storage.
2). Electronics Manufacturing Facilities
In assembly lines for semiconductors, circuit boards, and microchips, even a tiny static discharge can render products defective. Antistatic flooring is critical for maintaining product quality and reducing waste.
In assembly lines for semiconductors, circuit boards, and microchips, even a tiny static discharge can render products defective. Antistatic flooring is critical for maintaining product quality and reducing waste.
3). Medical Environments
Hospitals and clinics use antistatic flooring in operating rooms and labs to safeguard patients and medical devices (e.g., MRI machines, defibrillators) from ESD-related malfunctions.
Hospitals and clinics use antistatic flooring in operating rooms and labs to safeguard patients and medical devices (e.g., MRI machines, defibrillators) from ESD-related malfunctions.
4). Laboratories and Research Facilities
Scientific instruments like spectrometers and electron microscopes require stable electrostatic environments. Antistatic flooring prevents interference and ensures accurate test results.
Scientific instruments like spectrometers and electron microscopes require stable electrostatic environments. Antistatic flooring prevents interference and ensures accurate test results.
5). Cleanrooms
Pharmaceutical and aerospace cleanrooms demand strict ESD control to avoid contamination and equipment damage. Antistatic flooring is often combined with other contamination-prevention measures.
Pharmaceutical and aerospace cleanrooms demand strict ESD control to avoid contamination and equipment damage. Antistatic flooring is often combined with other contamination-prevention measures.
3. Installation Considerations for Antistatic Flooring
Pre-Installation Preparation
- Surface Evaluation: The subfloor must be smooth, dry, and free of cracks or debris. A moisture test is essential to prevent adhesive failure.
- Environmental Control: Maintain a stable temperature (18–24°C) and humidity (40–60%) during installation to ensure proper material expansion/contraction.
Installation Steps
(1).Subfloor Preparation: Level the subfloor and apply a primer if necessary to enhance adhesion.
(2).Laying the Flooring Material:
For tiles or sheets, use conductive adhesive to bond them securely.
Ensure proper alignment and minimal gaps to maintain uniform conductivity.
(3).Bonding and Grounding:
Connect the flooring system to a grounding grid using copper strips or conductive tape.
Verify grounding resistance (≤10⁶ ohms) to ensure effective charge dissipation.
(2).Laying the Flooring Material:
For tiles or sheets, use conductive adhesive to bond them securely.
Ensure proper alignment and minimal gaps to maintain uniform conductivity.
(3).Bonding and Grounding:
Connect the flooring system to a grounding grid using copper strips or conductive tape.
Verify grounding resistance (≤10⁶ ohms) to ensure effective charge dissipation.
Post-Installation Testing
- Resistivity Testing: Use a surface resistivity meter to confirm the flooring meets the required range.
- Bonding Integrity Check: Ensure all conductive paths are continuous and free of breaks.
Maintenance Tips
- Regularly clean the flooring with ESD-safe detergents to remove dust and debris.
- Avoid using abrasive cleaners that may damage the conductive layer.
- Replace damaged tiles immediately to maintain system integrity.
4. Common Mistakes to Avoid
- Inadequate Grounding: Poor grounding negates the flooring’s ESD protection. Always hire certified installers.
- Ignoring Environmental Factors: Extreme temperatures or humidity can compromise performance.
- Mixing Non-Conductive Materials: Using non-conductive furniture or equipment on antistatic flooring can create static buildup.
Conclusion
Antistatic flooring is a cornerstone of ESD protection in industries reliant on sensitive technology. By understanding its principles, applications, and proper installation, businesses can safeguard their assets, improve operational efficiency, and ensure compliance with global standards. Whether in a data center or a hospital, investing in high-quality antistatic flooring is a proactive step toward minimizing risks and maximizing productivity.
